DESCRIPTION

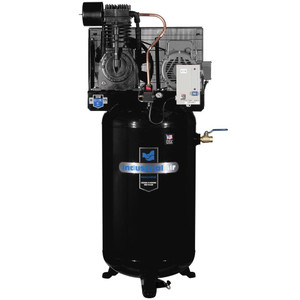

Industrial Air Compressor 5 HP Single Phase 230V 60 Gallon Two Stage
Industrial Air 60 Gallon two stage compressor has a large enough capacity to operate multiple air tools at the same time. It generates up to 13.5 CFM at 175 PSI for superb performance. The uniquely designed two stage pump improves pump efficiency allowing it run cooler, at lower RPM, to improve its life. The 5.0 HP motor with thermal overload protection does not require a magnetic starter.
FEATURES
SPECIFICATIONS
Brand Name
Industrial Air
Air Compressor Pump Design
Oil Lubricated
Amperage (A)
24.0
Assembled Weight (lbs)
424
California Proposition 65 Warning Required
Yes
Compressor Design
Vertical
Country of Origin
United States
CSA Certified
Yes
ETL Listed
Yes
Full Roll Cage
No
globalTradeItemNumber (GTIN)
00846212057704
Height (in)
80.0
Horsepower (hp)
5.0
Internal Supplier Part #
IV5076055
Internet Product Code (IPC)
39C4748A0AF
Lock-on Switch
No
Manufacturer Warranty
2 year limited
Maximum Pressure Rating (psi)
175.0
Operating Position
Vertical
Package Contents
air compressor
Package Depth
40.0
Package Height
80.0
Package Weight
424.0
Package Weight (lbs)
424
Side Handle
No
Switch Type
pressure
Tank Capacity (gal)
60.0
Tank Configuration
Single
Tank Material
steel
Tank Pressure Gauge
Yes
UL Listed
Yes
UPC
846212057704
Voltage
240
Weight (lbs)
424.0
Wheeled
Yes
2 year limited
