DESCRIPTION

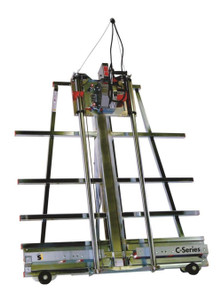

Safety Speed Mfg C4 Vertical Panel Saw
The C4 model packs all of the features of the full-size panel saws into a portable 5 Ft. frame. This panel saw can travel to work sites and fit into shops with limited floor space. The C4 is ideal for cutting 4 Ft. x 8 Ft. sheets of material. The C4 comes standard with a 3-1/4 HP, 15 amp industrial duty saw motor, adjustable vertical and horizontal rulers, spring loaded counter balance system, quick change from vertical to horizontal cutting, 1 year parts warranty, and a lifetime frame warranty.
FEATURES
SPECIFICATIONS
Brand Name
Safety Speed Mfg
Amperage (A)
15
Assembled Weight (lbs)
177
California Proposition 65 Warning Required
Yes
Country of Origin
United States
Diameter
8 in
Dust Port Outside Diameter (in)
1.5
ETL Listed
No
globalTradeItemNumber (GTIN)
00859901001018
Horsepower (hp)
3.25
Integrated Laser Guide
No
Internal Supplier Part #
C4
Internet Product Code (IPC)
209FAAA87B4
Manufacturer Warranty
Yes
Maximum Cutting Depth (in)
1.75
Maximum Dado Width (in)
0
Package Contents
1 Dust Port
Package Depth
0
Package Height
0
Package Weight
177
Package Weight (lbs)
177
Roller Material
Injected Molded Plastic
Size
0.625 in
Spindle Lock
Yes
UL Listed
No
UPC
859901001018
Voltage
120/220 Volts
Wheeled
Yes
1 year parts warranty, and a lifetime frame warranty
