DESCRIPTION

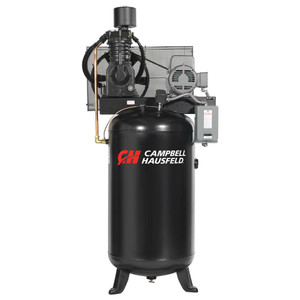

Campbell Hausfeld Air Compressor 80 Gallon Vertical
The Campbell Hausfeld 80-gallon, 5 hp, vertical, two-stage air compressor (CE7051) is ideal for auto repair facilities and tire repair outlets. This air compressor has a high air flow of 17.2 CFM @ 90 PSI to power air tools. Operating on three-phase electric power, its rugged motor drives a long-life, cast-iron, two-stage pump that's designed to deliver more than 15,000 hours of operation. The pump head and valve plate feature an advanced design with Viton(r) high-temperature O-rings for superior high-pressure sealing when compared to paper gaskets. For smooth, low-vibration operation, the crankshaft is fabricated of ductile iron and optimally balanced.
FEATURES
SPECIFICATIONS
Brand Name
Campbell Hausfeld
Amperage (A)
6.4
Assembled Weight (lbs)
540
California Proposition 65 Warning Required
Yes
Compressor Design
Vertical
Country of Origin
China
CSA Certified
Yes
ETL Listed
No
Height (in)
78
Horsepower (hp)
5
Internal Supplier Part #
CE7051
Manufacturer Warranty
3 year limited
Maximum Pressure Rating (psi)
175
Operating Position
Vertical
Package Contents
Air Compressor 80 Gallon Vertical
Package Depth
35
Package Height
78
Package Weight
540
Tank Capacity (gal)
80
Tank Configuration
Single
Tank Material
cast iron
Tank Pressure Gauge
No
UL Listed
Yes
UPC
045564628413
Voltage
208-230/460
Weight (lbs)
540
Wheeled
No
3 year limited
