DESCRIPTION

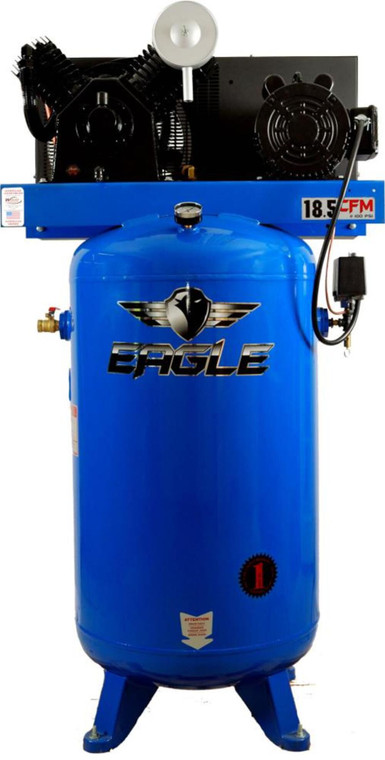

Eagle Compressor 80 Gallon 5 HP Stationary Vertical Compressor
Eagle 5180V2-CS 80 Gallon ASME horizontal stationary capacity tank. Thermally protected 5 HP 230 volt 50 Hz single phase or three phase electric motor. Cast iron cylinders with V design. Oil lube compressor delivers 18.5 CFM at 100 PSI. 175 Maximum PSI. Easy view oil sight gauge. Metal air filers with “auto drop” feature. Efficient heat removal from pulley-fan for cooler running and longer life. Sturdy metal belt guard. Outlet valve included.
FEATURES
SPECIFICATIONS
Brand Name
Eagle Compressor
Air Compressor Pump Design
Oil Lubricated
Amperage (A)
0
Assembled Weight (lbs)
525
California Proposition 65 Warning Required
Yes
Compressor Design
Vertical
Country of Origin
United States
CSA Certified
No
ETL Listed
No
globalTradeItemNumber (GTIN)
00020791502101
Height (in)
69
Horsepower (hp)
5
Internal Supplier Part #
5180V2-CS
Internet Product Code (IPC)
C4EE068B9A6
Manufacturer Warranty
1 year warranty
Maximum Pressure Rating (psi)
175
Operating Position
Vertical
Package Contents
80 Gallon 5 HP Stationary Vertical Compressor
Package Depth
48
Package Height
78
Package Weight
525
Tank Capacity (gal)
80
Tank Configuration
Single
Tank Material
Metal
Tank Pressure Gauge
Yes
UL Listed
No
UPC
020791502101
Voltage
230
Weight (lbs)
450
Wheeled
No
1 year warranty
