DESCRIPTION

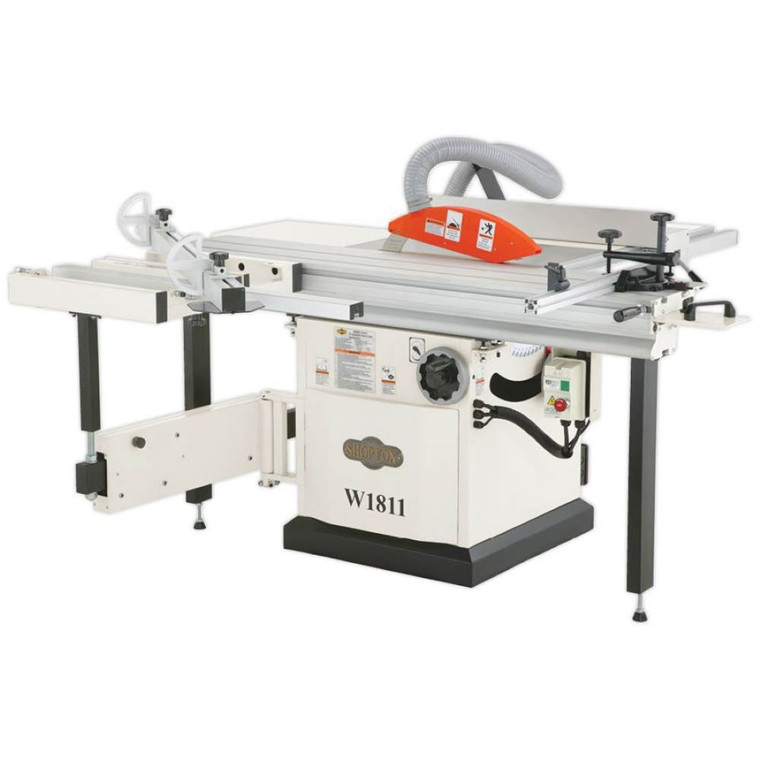

Shop Fox 10" Sliding Table Saw 230V 5HP 1 Phase
Perfect for cutting wide panels in limited shop space, this 10 In. sliding table saw features a scoring blade to eliminate cross grain tear-out, a 63 In. long crosscut capacity, telescoping crosscut fence with two rock-solid flip stops, fully-adjustable miter fence with its own flip stop, two-position extruded-aluminum rip fence, riving knife, and large blade guard with integral dust port. This 10 in. sliding table saw makes quick work of all standard plywood panels. Accepts 10 In. saw blades with 5/8 In. arbor bores or dado blades up to 13/16 In. wide. Certified to CSA standards
FEATURES
SPECIFICATIONS
Brand Name
Shop Fox
Amperage (A)
19
Assembled Weight (lbs)
688
Bench or Stationary
Stationary
California Proposition 65 Warning Required
Yes
Country of Origin
Taiwan
CSA Certified
Yes
Diameter
5/8 in
Dust Port
Yes
Dust Port Outside Diameter (in)
4
globalTradeItemNumber (GTIN)
00754001008113
Horsepower (hp)
5
Material
Cast Iron
Maximum Dado Diameter (In)
13/16
Maximum Dado Width (in)
13/16
Package Contents
Sliding Table Saw, Extended-Reach Push Stick,Fence,Miter Gauge
Package Depth
76
Package Height
46
Package Weight
689
Package Weight (lbs)
689
Phase
Single Phase
Table Height (in)
33.625
Table Length (in)
27
Table Width (in)
14.37
UL Listed
No
UPC
754001008113
