DESCRIPTION

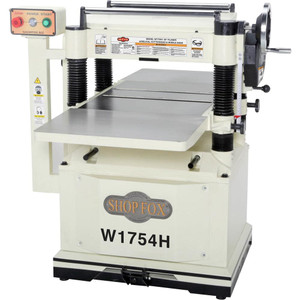

Shop Fox 4 Knife Planer 240V 5HP 1 Phase 20"
This 20 In. 4-knife planer with precision-ground cast-iron extension wings has the quality, capacity, and features to be a proud addition in any shop. Its 5HP motor will handle material up to 20 In. wide by 8-5/8 In. thick, and its two feed speeds will give you the option of running at 956 cuts per Ft., or a finer 1222 cuts per Ft.. Check out all of the other great features and you'll agree, this is one fine machine! Precision-ground cast-iron table and extension wings. Top-mounted return rollers. Magnetic switch overload protection. 5 In. dust port. Triple V-belt driven cutterhead. 2-speed chain-driven automatic feed rollers. Hardened anti-kickback fingers. CSA certified.
FEATURES
SPECIFICATIONS
Brand Name
Shop Fox
Amperage (A)
23
Assembled Weight (lbs)
816
Bench or Stationary
Stationary
Blade Count
4
Blade Length (in)
20
California Proposition 65 Warning Required
Yes
Country of Origin
Taiwan
CSA Certified
Yes
Drive Motor System
Electric
globalTradeItemNumber (GTIN)
00754001003996
Maximum Cutting Depth (in)
1/16
Maximum RPM
3450
Maximum Width Cutting Capacity (in)
20
Package Contents
20 In. 4-Knife Planer, Knife Setting Jig
Package Depth
58
Package Height
46
Package Weight
817
Package Weight (lbs)
817
Switch Type
Magnetic Switch with Thermal Overload Protection
UPC
754001003996
